Vertical Galvanized Treatment Filter Bag Cage For Blast Furnace Gas Dust Removal
The function of filter bag cage:
The dust filter bag frame, also known as the filter bag cage, has sufficient strength, verticality, and dimensional accuracy, all welding points are firm, and there is no de-soldering, virtual welding, and missing welding; the contact surface between the dust collector frame and the filter bag is smooth, and dust removal The surface of the filter bag frame is electroplated or painted.
Galvanized treatment dust collector filter bag cage Filter bag cage production:
The filter bag cage is the reinforcing rib of the filter bag, which should be light and easy to install and maintain. The quality of the cage is directly related to the filter state and service life of the filter bag. Every cage we make meets the requirements for tightness, flatness and stiffness.
Dust collector Filter bag filter cage Galvanized filter cage
The filter cage is the reinforcing rib of the filter bag and should be easy to install and maintain. The quality of the filter bag cage directly determines the working efficiency and service life of the filter bag. Galvanized steel filter bag cages are popular for their high hardness, light weight and smoothness. For surface treatments, we can offer spraying, silicon coating and galvanizing, all of which increase their hardness and keep them away from corrosion. And the filter cage with venturi can provide better protection for the filter bag.
Features of SS/Mild Steel Cage
1. Strong heat resistance.
2. Better protection of filter bag and connection with dust collector.
3. High dust removal efficiency.
4. No corrosion, long service life.
Application:
Mine industry.
Medicine industry
Plastic, food industry.
Coal fired power stations.
Steel power station.
Cement industry.
Paper industry.
Building and construction industry.
Other industrial segments.
| Specifications |
| |
| Types: | Round Style/Flat Style/Envelope Style/ Special Style |
| Number Of Wires: | 8/10/12/16/20/24 vertical wires(usually) |
| Ring Space: | Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) |
| Cage Diameter: | Cage diameters range from 4 inch to 8 inch (100mm to 200mm) |
| Wire thickness: | Wire thickness ranges are 2mm to 5mm |
| Material: | Carbon Stee, Galvanized Steel, Stainless Steel |
| Finishment: | Epoxy, PVC vinyl coating |
| Packaging: | Cages are packed in custom designed cartons |
| Usage: | Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. |
| Advantages: | 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel |
| 4. economical maintenance(almost no Maintenance required) |
| 5.prominent effect in removing dust from Filter by pulsing 6.easy to install |
| 7.no ventury installation required |
| |
| Standard Technical Data |
| |
| Round Style | Diameter(mm) | Bag Diameter(mm) | Length(mm) |
| 115 | 120 | 2000,2400 2800, |
| 3200,3600,4000, |
| 125 | 130 | 4400,4800,5200, |
| 147 | 152 | 560,060,007,000 |
| 195 | 200 | |
| Flat Style | Perimeter | Bag Perimeter | Length(mm) |
| 800 | 800 | 2000 3000 4000 |
| 5000 6000 |
| 900 | 900 | |
| Envelope Style | Length Width Thickness | Bag Length Width Thickness |
| 1500X750x25mm | 1500X750x25mm |
Why choose us?
1. Factory Experience: We are an experienced manufacturer with complete production lines and professional production equipment.
2. Quality assurance: We always strictly implement the quality management system, run through every detail of production, and be responsible for the products required by customers.
3. One-stop purchasing: We provide one-stop purchasing of filtration products to meet the different needs of global customers.
4. Other advantages: We respond quickly within 12 hours, provide efficient and high-quality services and competitive prices.
Filter Bag Cage Production Process:
Our factory:
Our Certificate:
More details, pls feel free to contact us, Thanks
Product Tags:
|
|

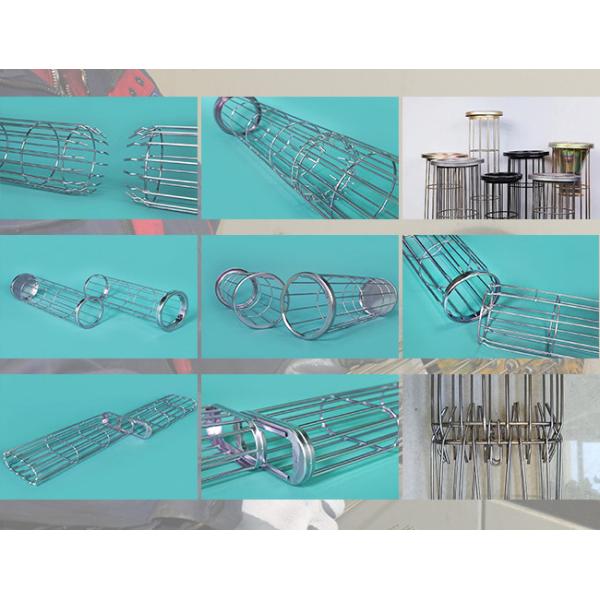

3.5mm 3.8mm 4mm Thick Filter Bag Cages Galvanized Ribbed For Medicine Industry Images
|
